Features

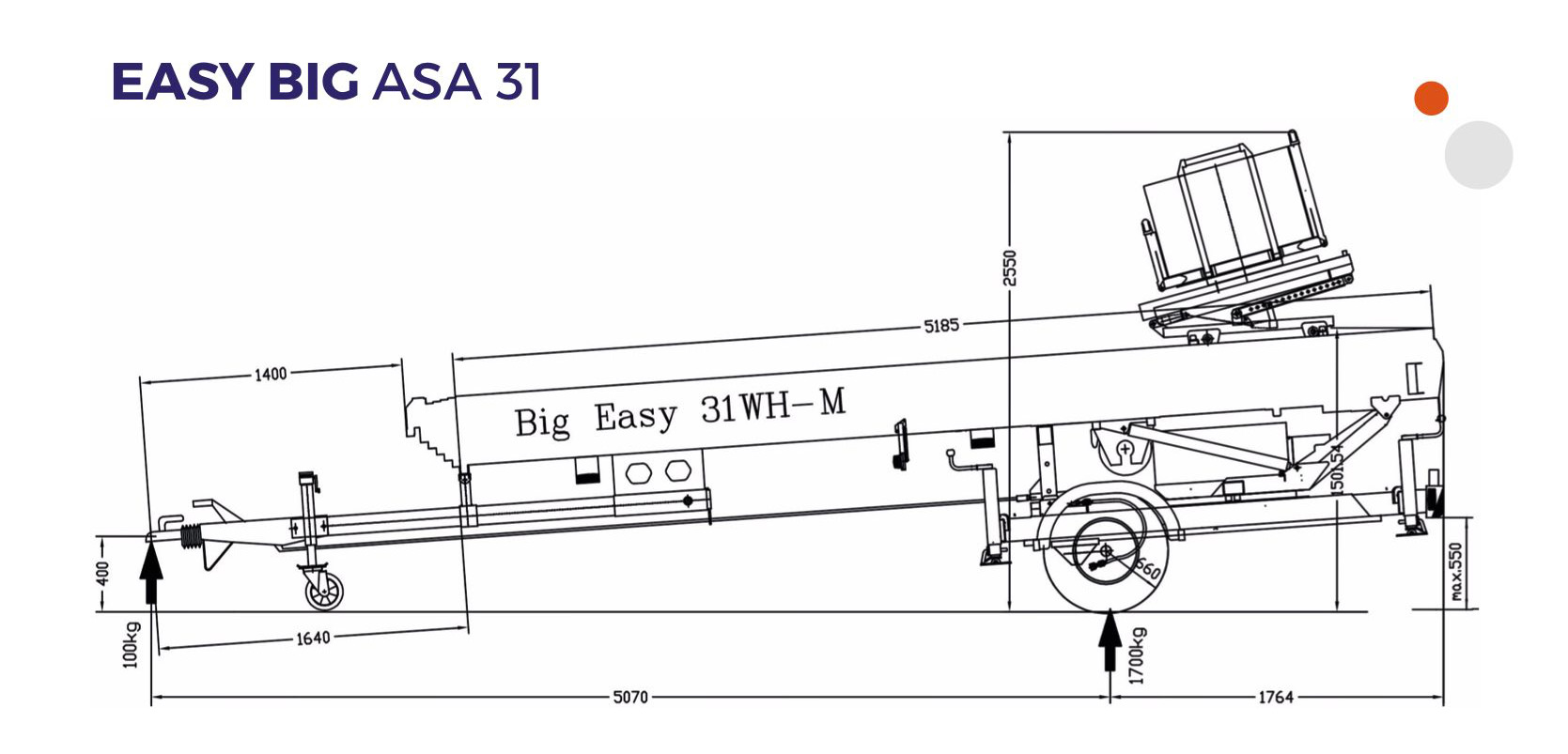

Technical scheme
Click on the image for the zoom.
Technical Data
| EASY BIG ASA 28 WHM | EASY BIG ASA 31 WHM | |
| Maximum height | 28 mt c.a. | 31 mt c.a. |
| Minimum stabilization work | 169 X 230 cm c.a. | |
| Maximum stabilization work | 385 X 385 cm c.a. | |
| Turnable turret | 360° | |
| Minimum work inclination | 30° | |
| Maximum work inclination | 85° | |
| Basket payload maximum | 300 / 400 kg | |
| Basket dimension close | 150 X 85 cm c.a. | |
| Basket dimension open | 262 X 141 cm c.a. | |
| Basket system leveling | Automatic with two gas spring | |
| Emergency brake | Parachute brake with gas spring | |
| Wheels head | Extensible | |
| Controls | Double control with cable control, buttons in head of lift | |
| Basket lift | Rotation and sliding system | |
| Engine possibility | Thermal or Electro-Hydraulic engine | |
All technical data are subject to change without any warning.
Other information?
Contact us, fill out the form in reference to this product:
EASY BIG 28-31 – PAUS – Trailer Lifts
