CITY FLOH 31-33 – PAUS – Truck Lifts

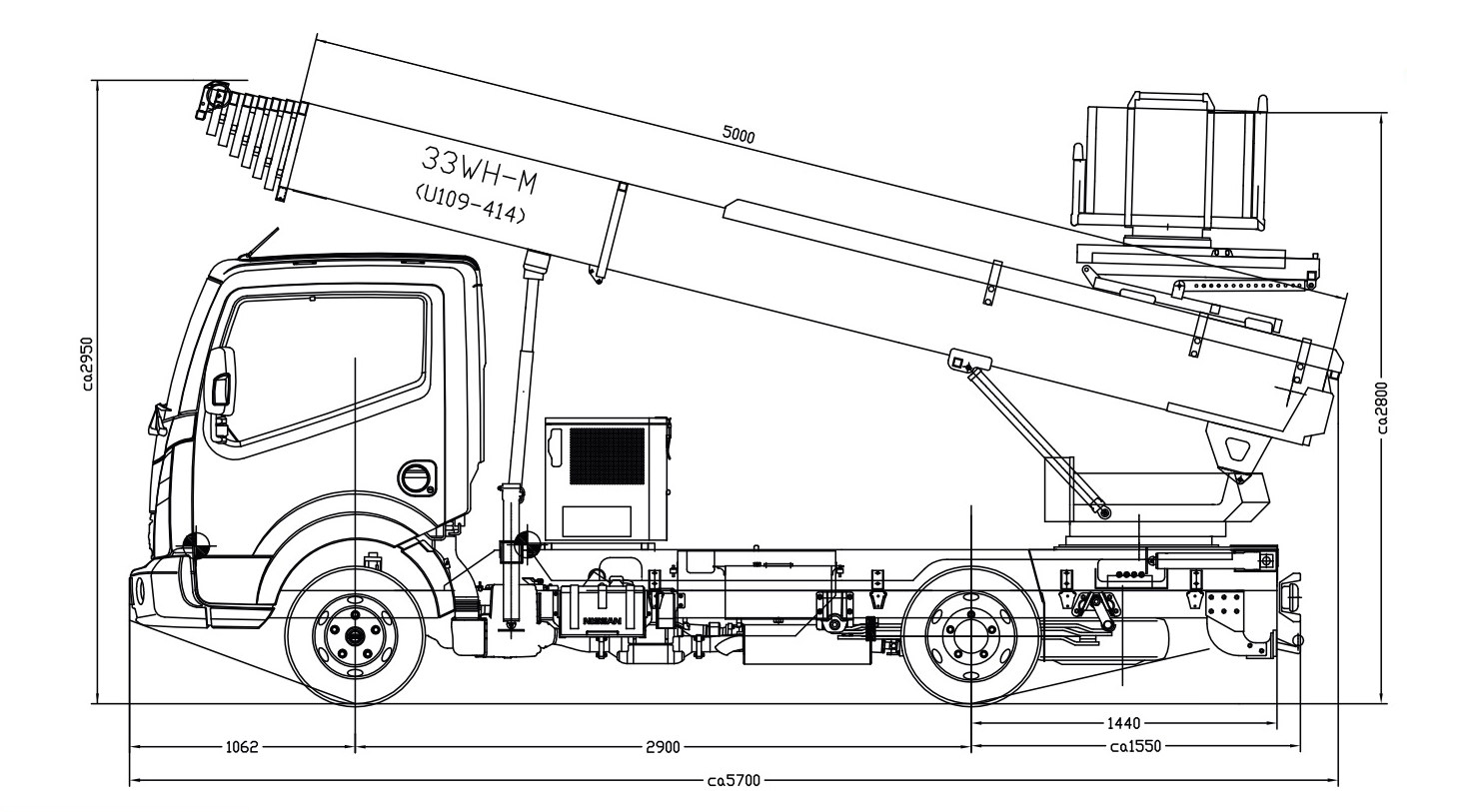

Technical scheme

Click on the image for the zoom.

Technical Data

Maximum height 31 mt c.a. 33 mt c.a.
Maximum length 570 cm c.a
Maximum width 182 cm c.a.
Front size 295 cm c.a.
Basket payload maximum 400 kg
Section n.7 Section n.8 Section
Extension section Hydraulic winch

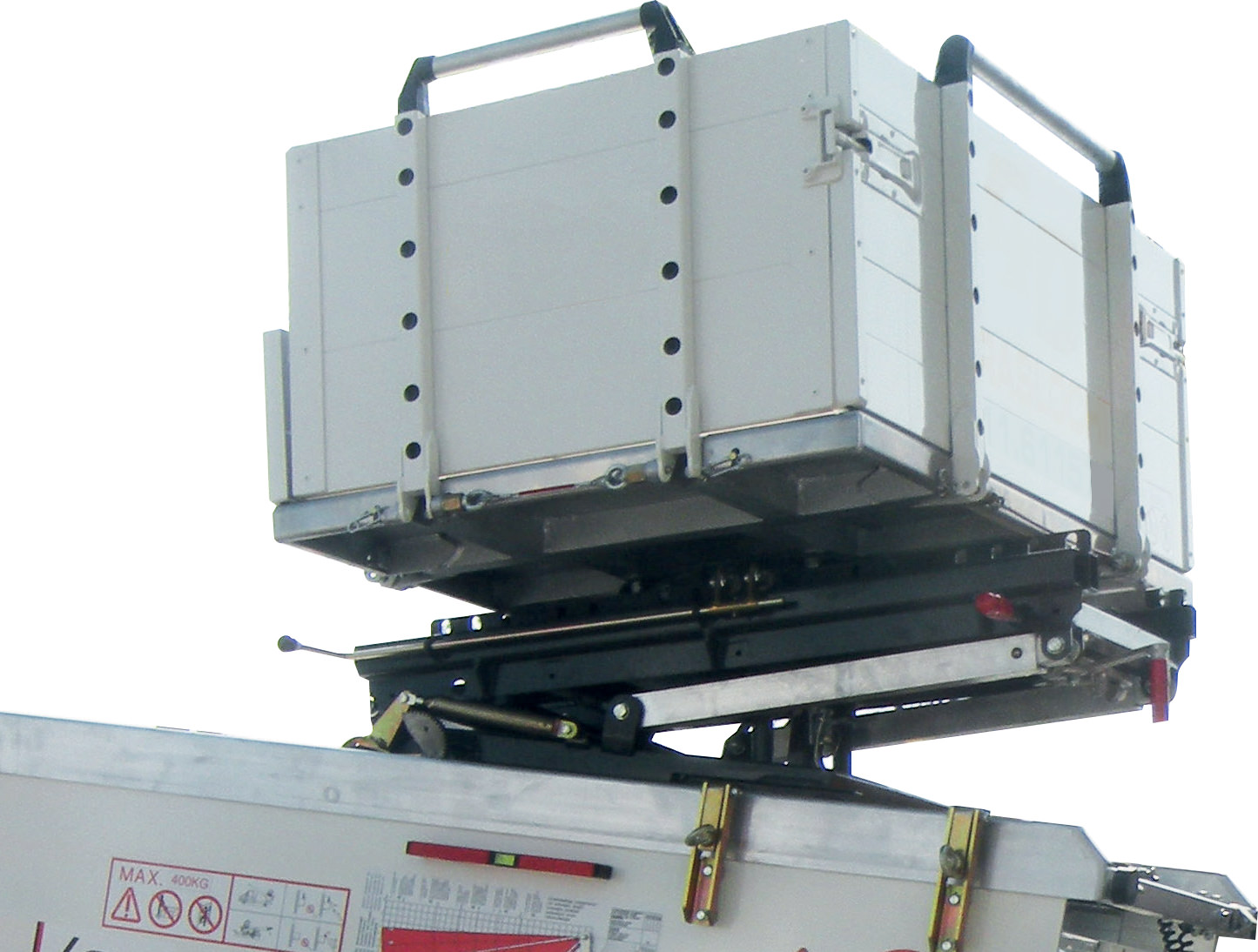

Basket dimension close 150 X 85 cm c.a.
Basket dimension open 262 X 141 cm c.a.
Basket system leveling Automatic with two gas springs
Emergency brake Parachute brake with gas springs
Wheels head Extensible
Controls Double control with cable control and buttons in head of lift
Basket lift Rotation and sliding system
Engine possibility PTO / Thermal or Electro-Hydraulic engine

All technical data are subject to change without any warning.
